DUNAVOX NOBLE SERIES
DUNAVOX Noble-32 Overlay Panel
DVN-32.85DOP.TO
GARAN Manufacturer's guaranteeh2>Compact Dual-Zone Wine Cooling for Modern Integrated KitchensThe DUNAVOX Noble 32 Series offers elegant dual-zone wine storage in two design options: the DVN-32.85DB.TO with a black glass door and the DVN-32.85DOP.TO with an overlay panel-ready door, both delivering 32-bottle capacity for modern kitchens and premium furniture projects.It can be insta…

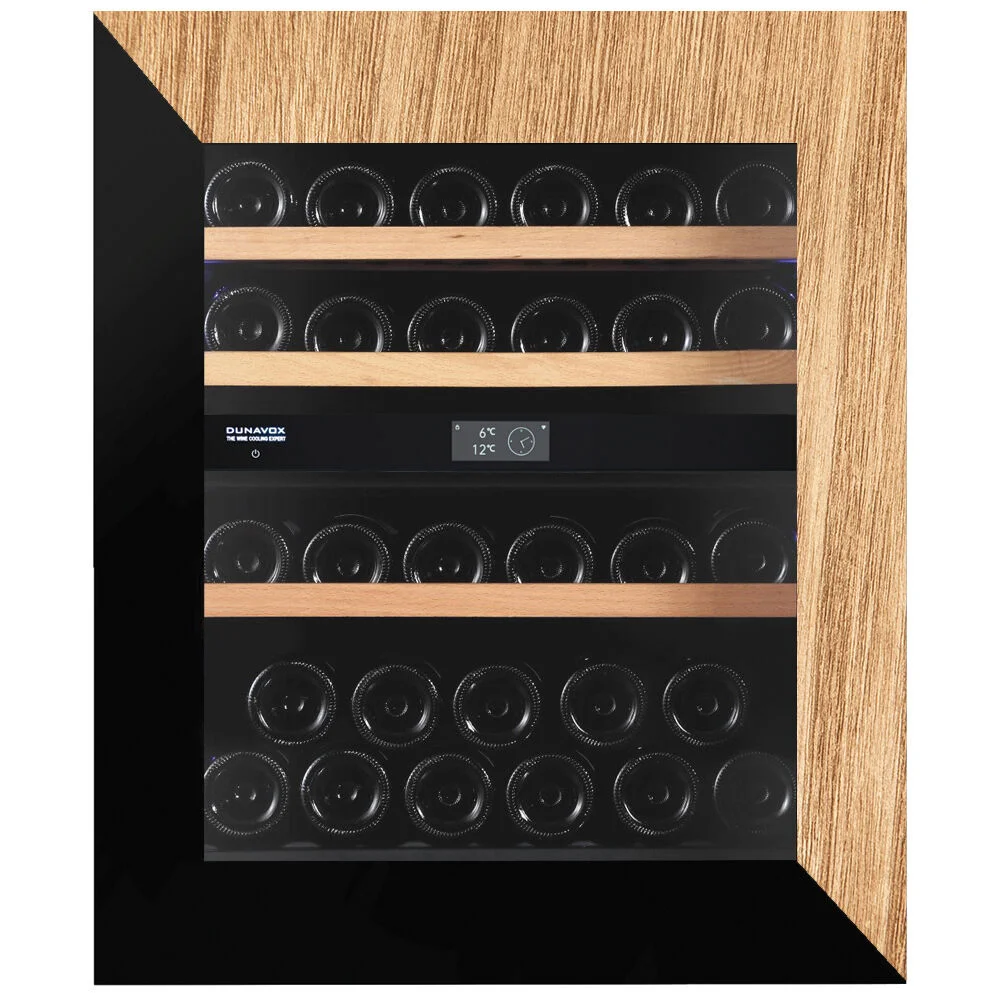

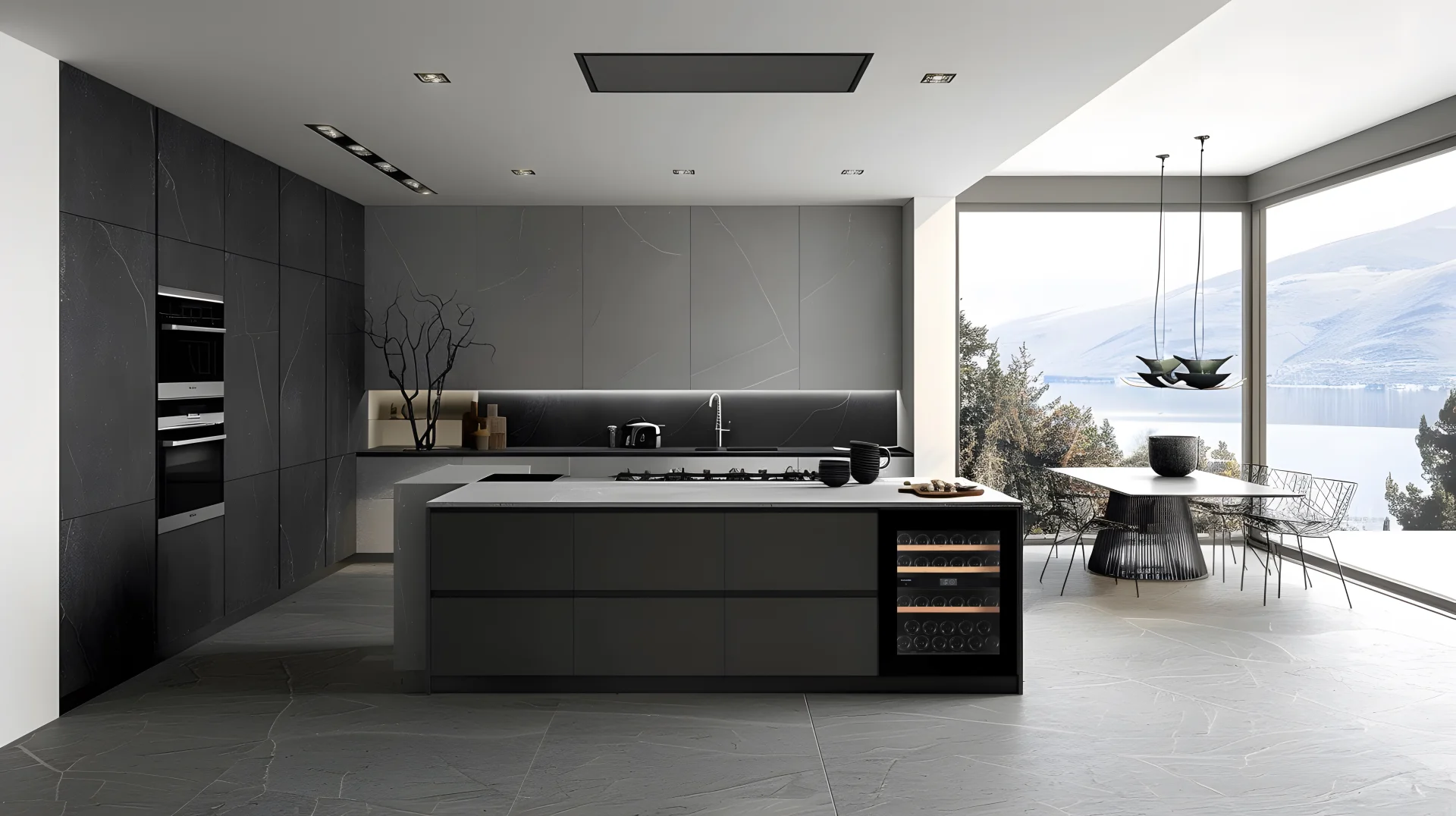

The DUNAVOX Noble-32 Overlay Panel version features a panel-ready door that accepts a custom furniture front, blending invisibly into surrounding cabinetry.
Specification
DUNAVOX Noble-32 Overlay Panel — Technical Data
Colour
Black, Overlay Panel
Installation
Fully integrated / Undercounter
Door Opening
Push-to-open

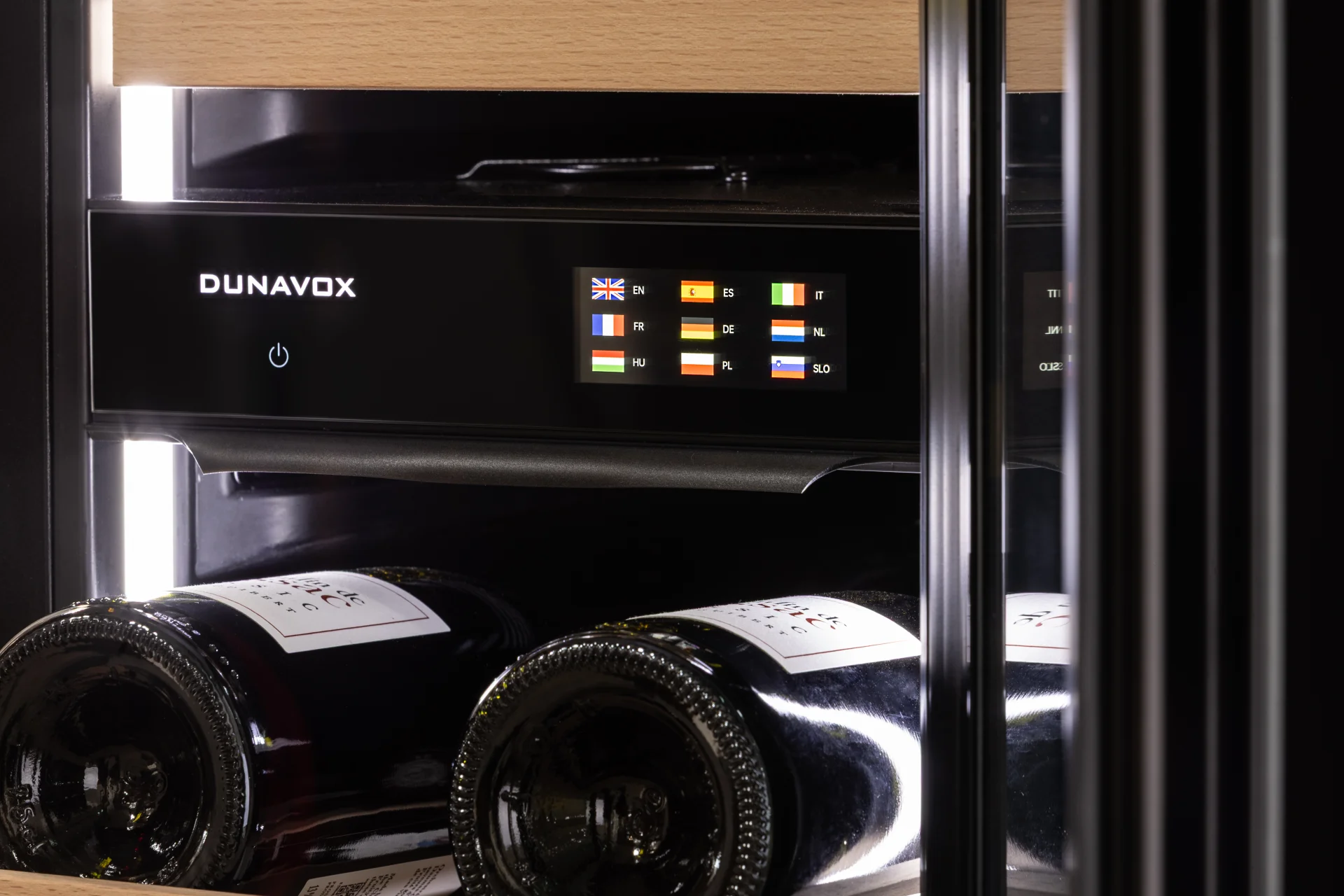

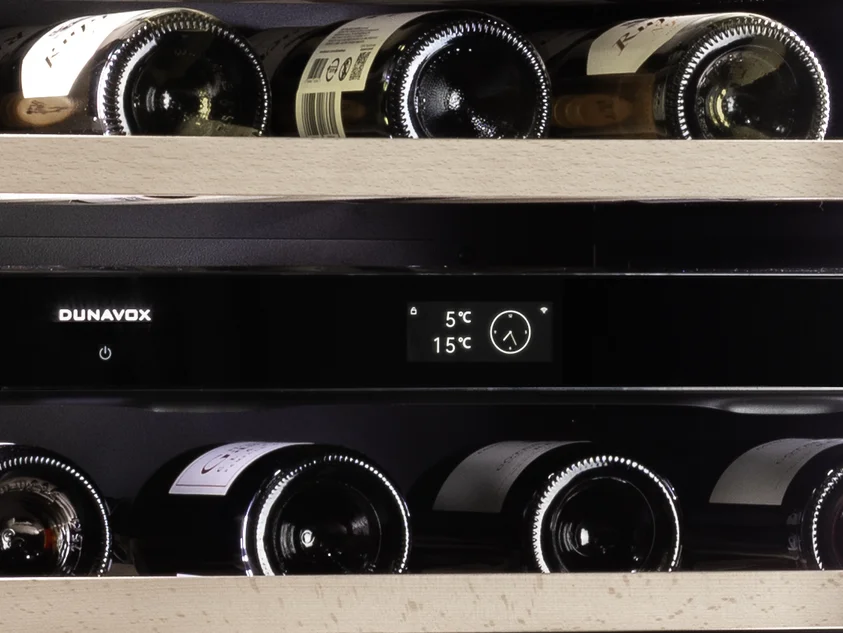

Display
TFT touch screen
Energy Class
F
Annual Consumption
103 kWh/a
Rated Power
220-240V, 50Hz, 0,6A
Temperature Range
5-10°C // 10-18°C
Cooling System
Fan assisted cooling, inverter compressor
Noise Level
36dB
Warranty
3 years parts and labour + 2 years for compressor
Glass Door
UV protected, 2 layers of glass + Low-E, reversible
Interior Light
Multi LED light (white, amber, blue)

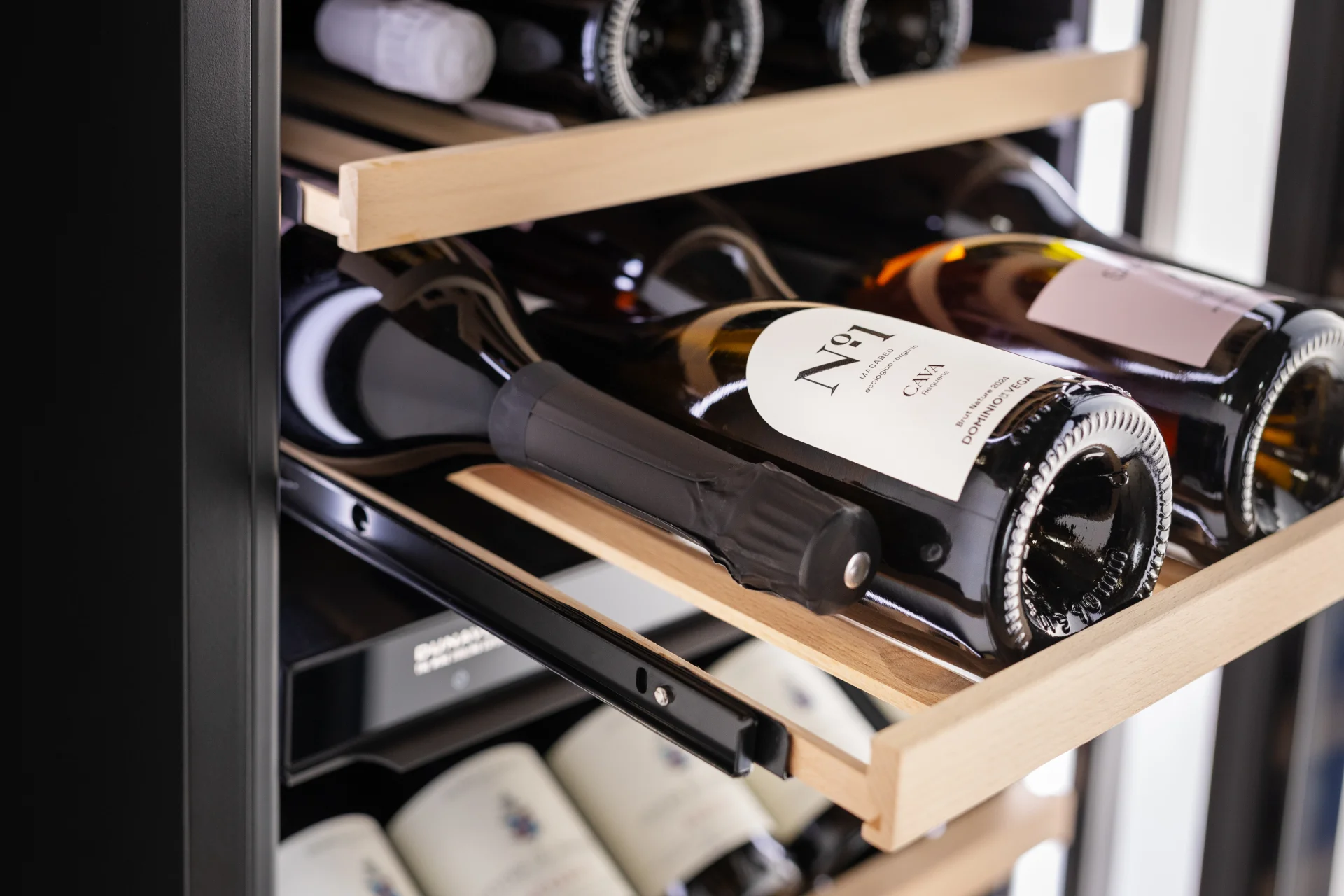

Shelves
Telescopic wooden shelves
Bottle Capacity
32
Cooling Zone
Dual
Dimensions (gross)
765×650×660 mm
Dimensions (net)
715×590×563 mm
Net Weight
48.0 kg

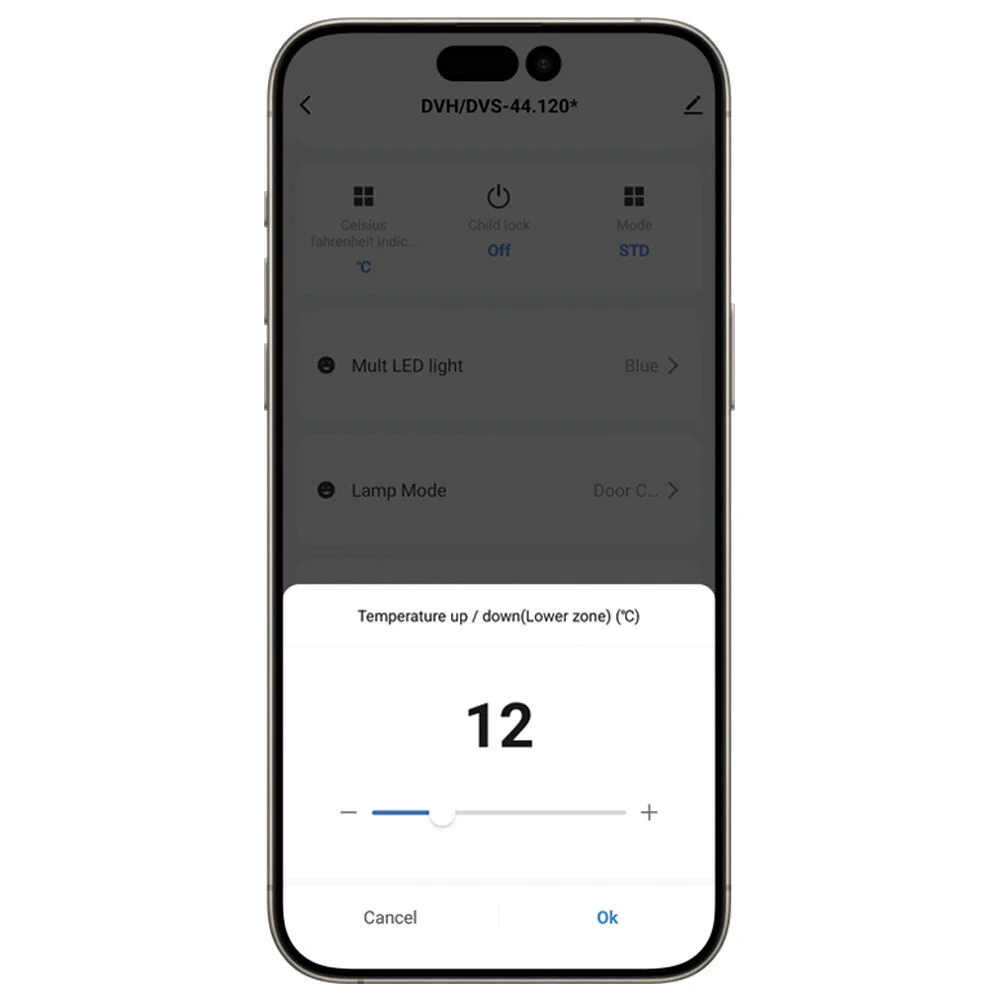

WiFi + Smart App
Yes
Built-in Heater
No
Low Vibration
Yes
