DUNAVOX NOBLE SERIES
DUNAVOX Noble-109
DVN-109.291DB.TO

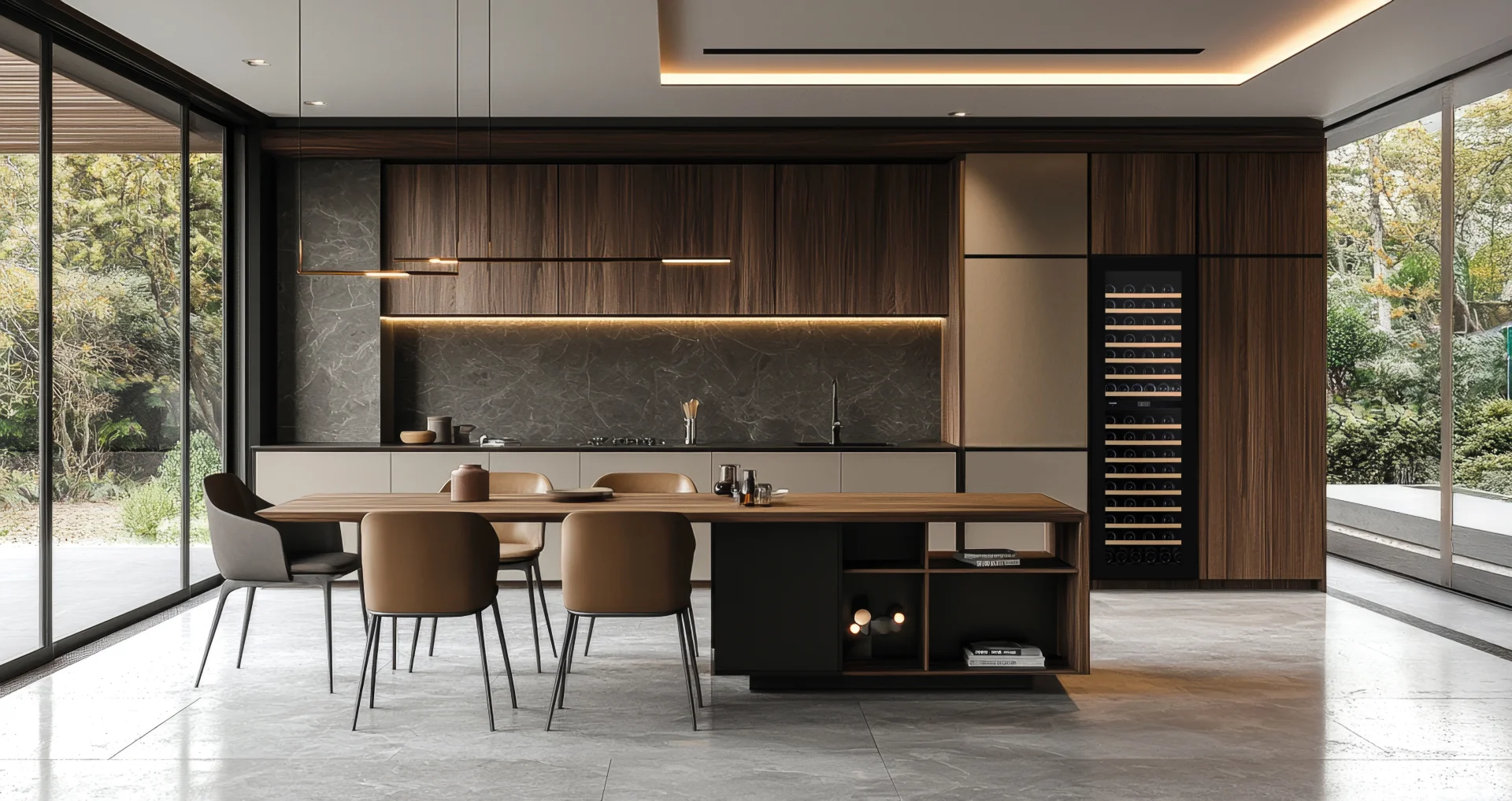

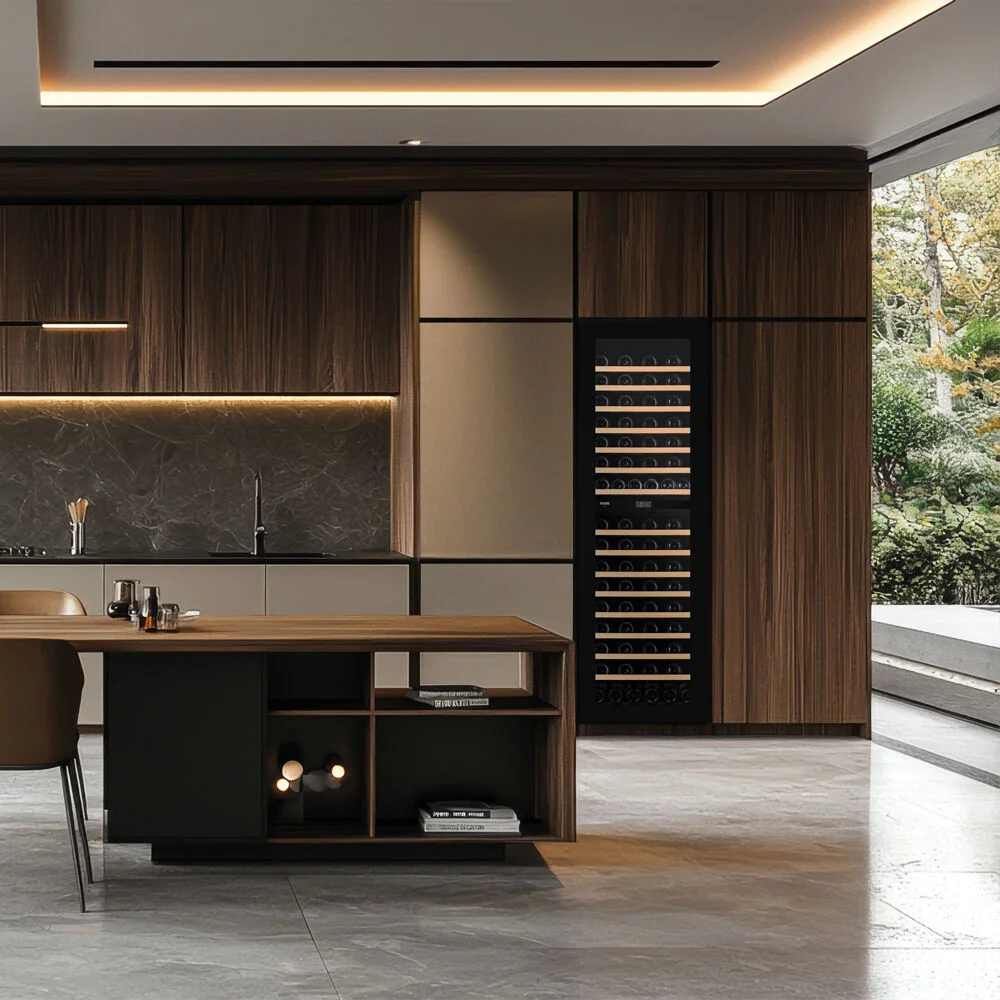

GARAN Manufacturer's guaranteeCollector-Scale Dual-Zone Wine Storage with Full-Height IntegrationThe DUNAVOX Noble 109 Series includes the DVN-109.291DB.TO with a black glass front and the DVN-109.291DOP.TO with an overlay panel-ready door, offering collector-scale, 109-bottle dual-zone wine storage for luxury kitchens and advanced architectural integration projects.Created for handlel…

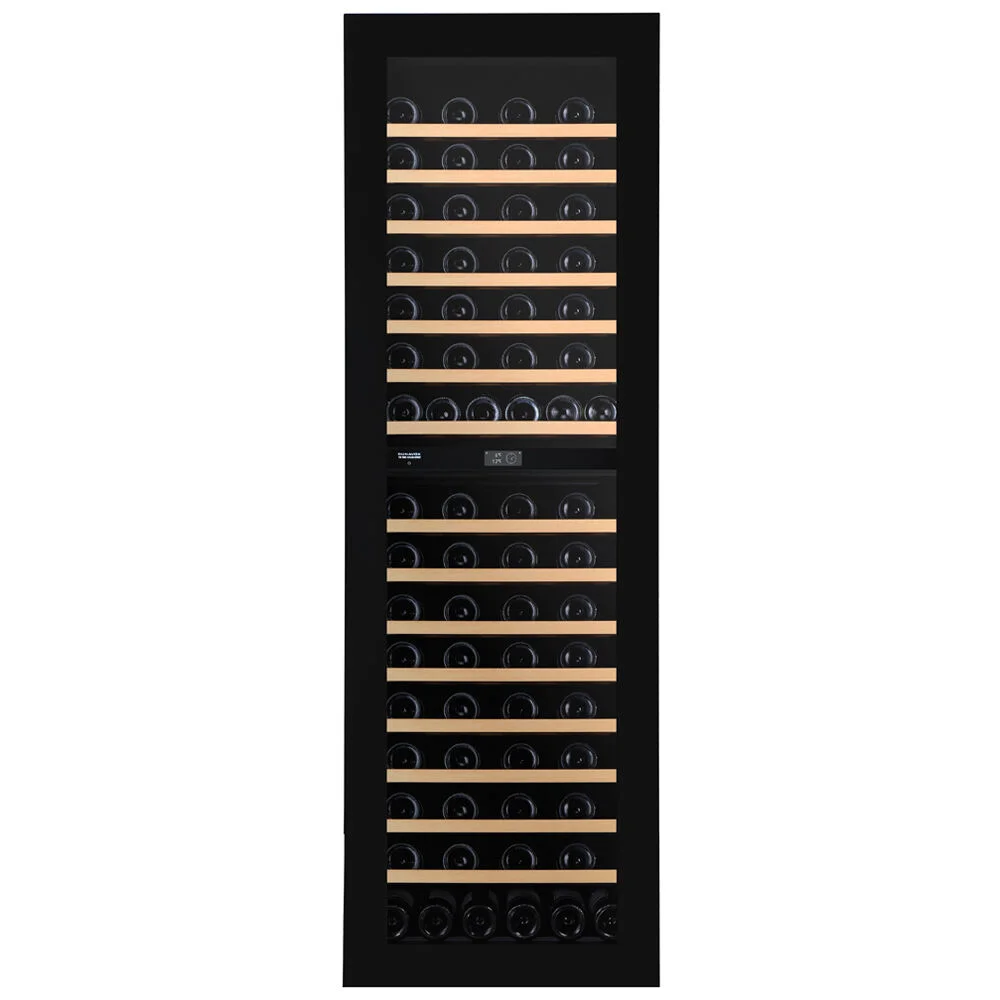

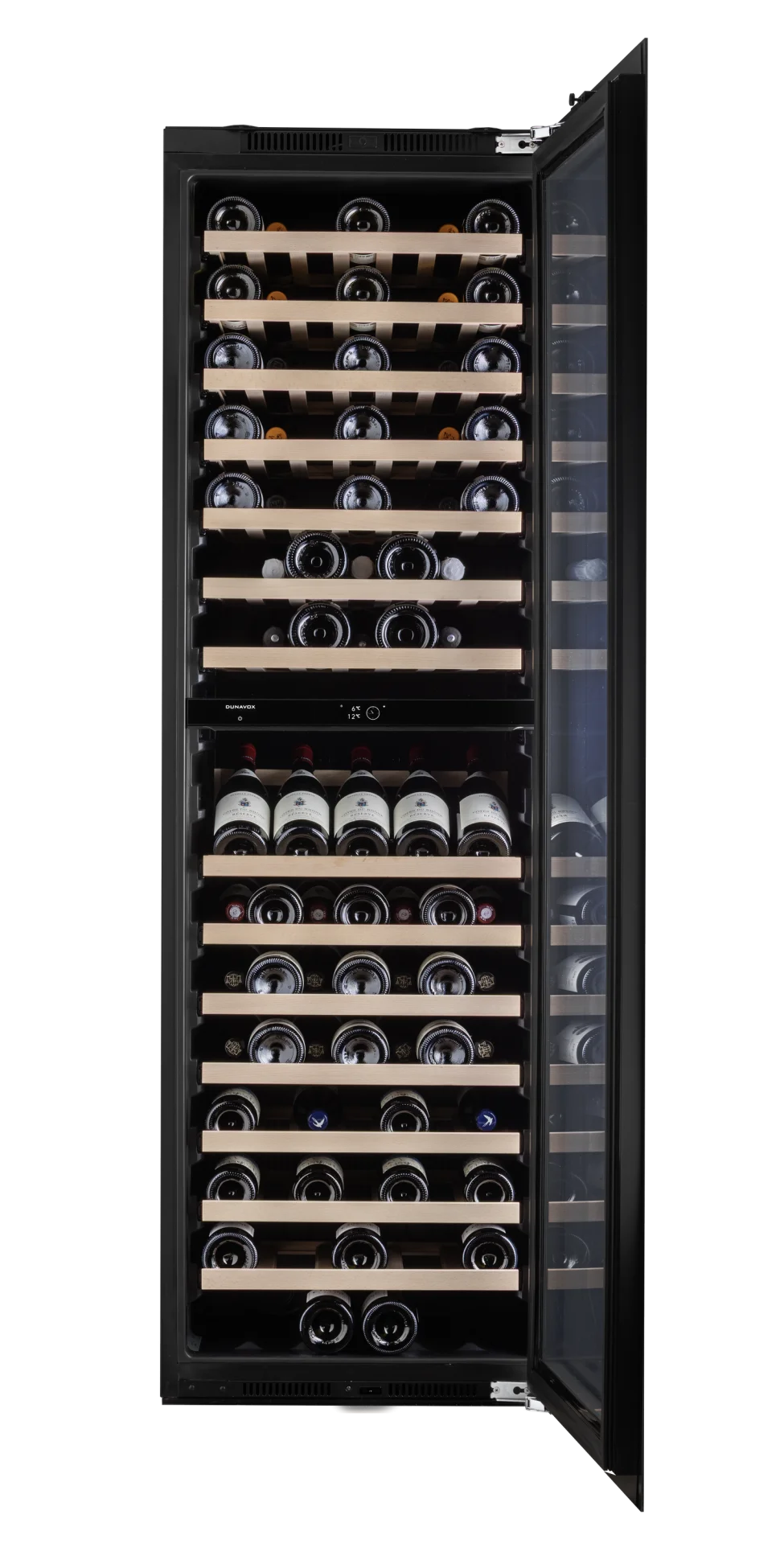

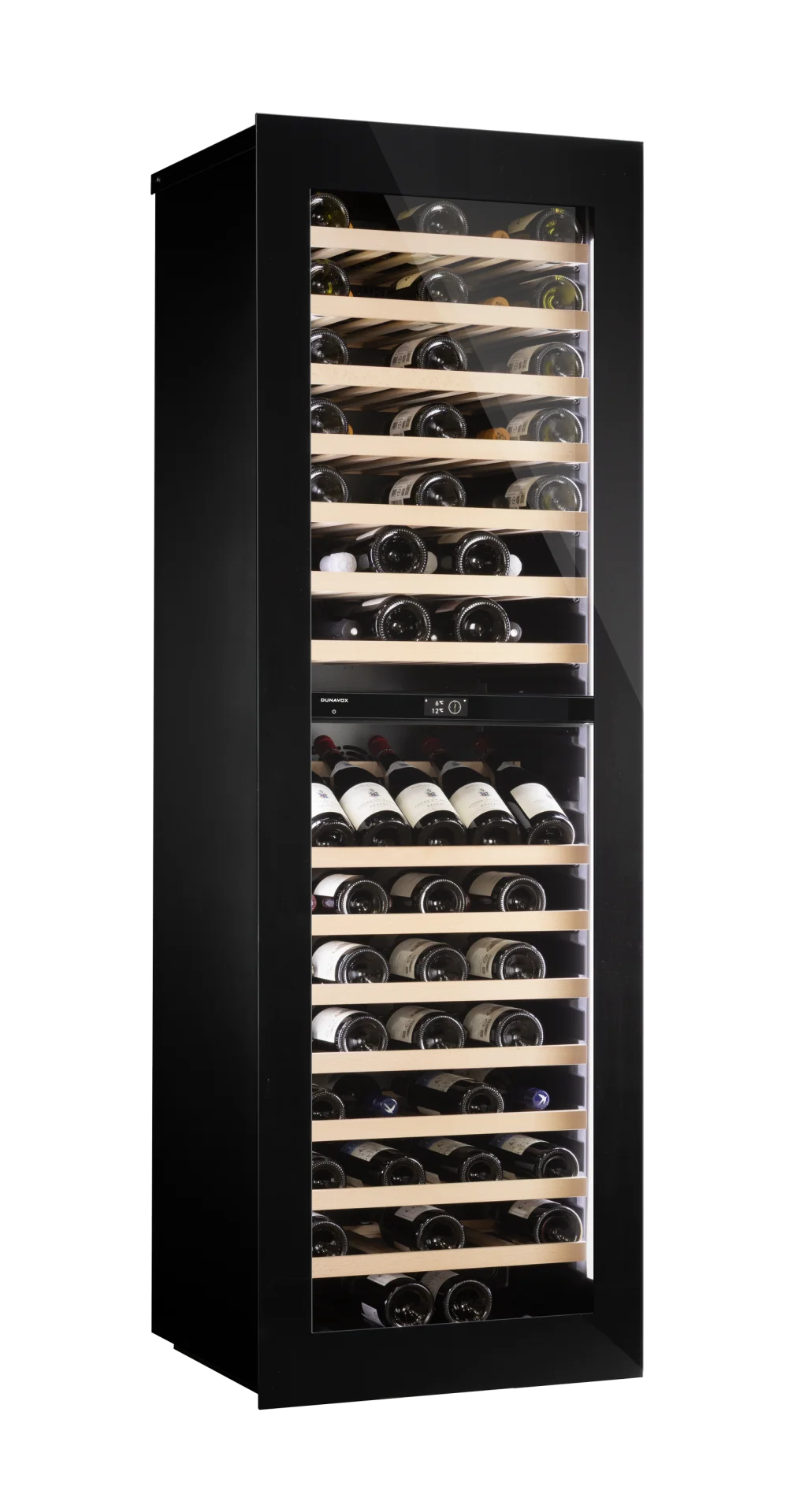

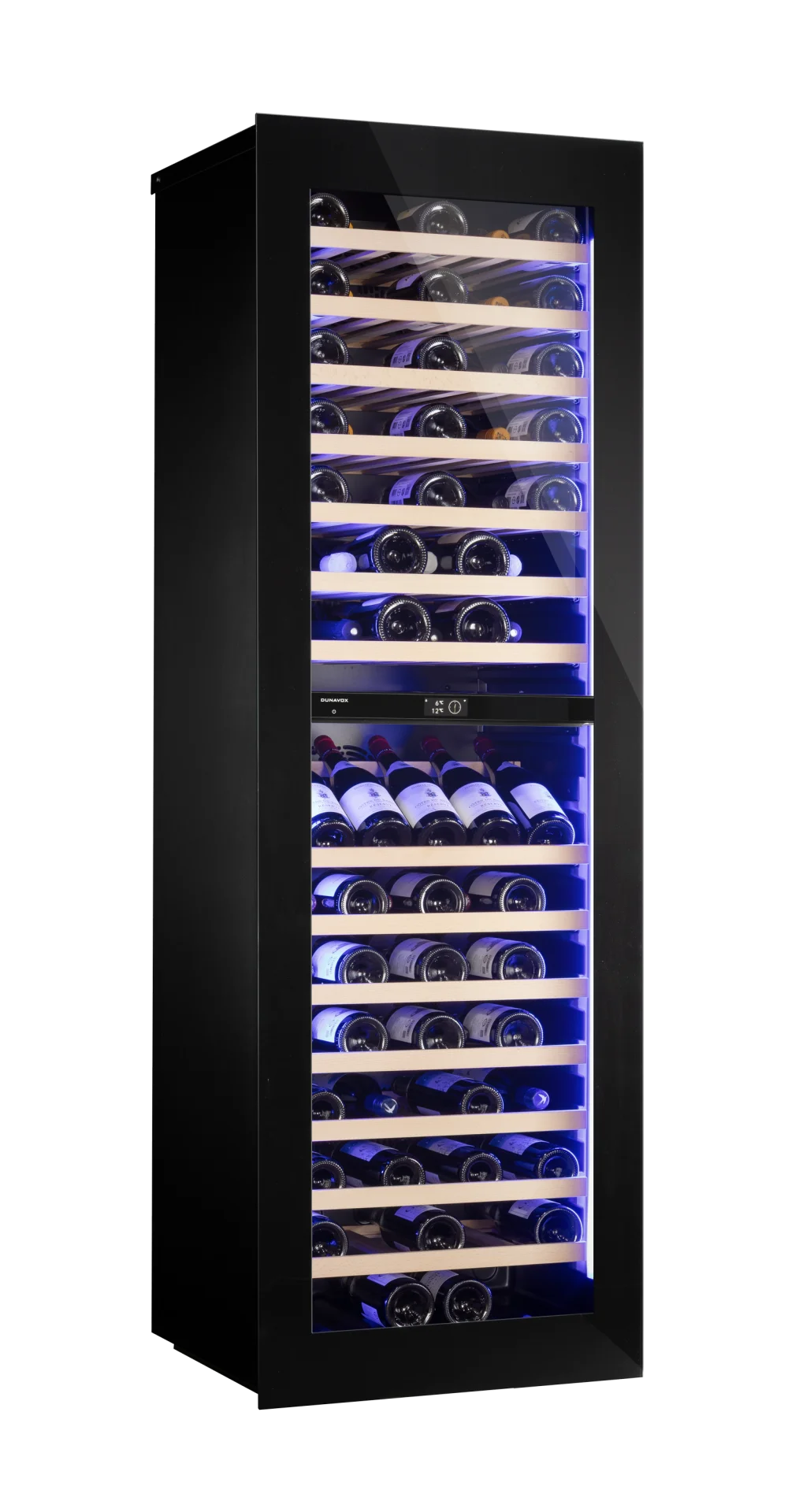

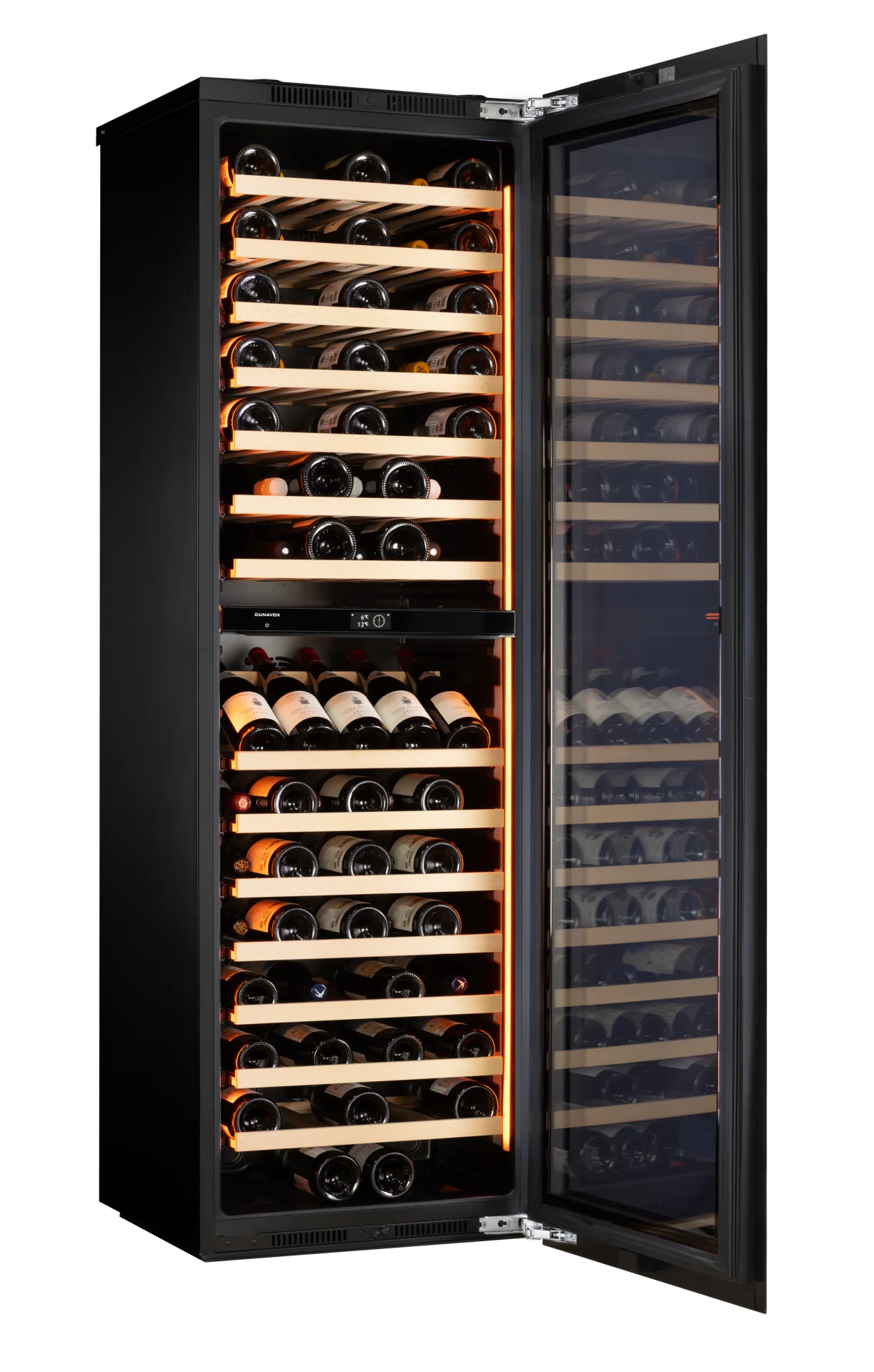

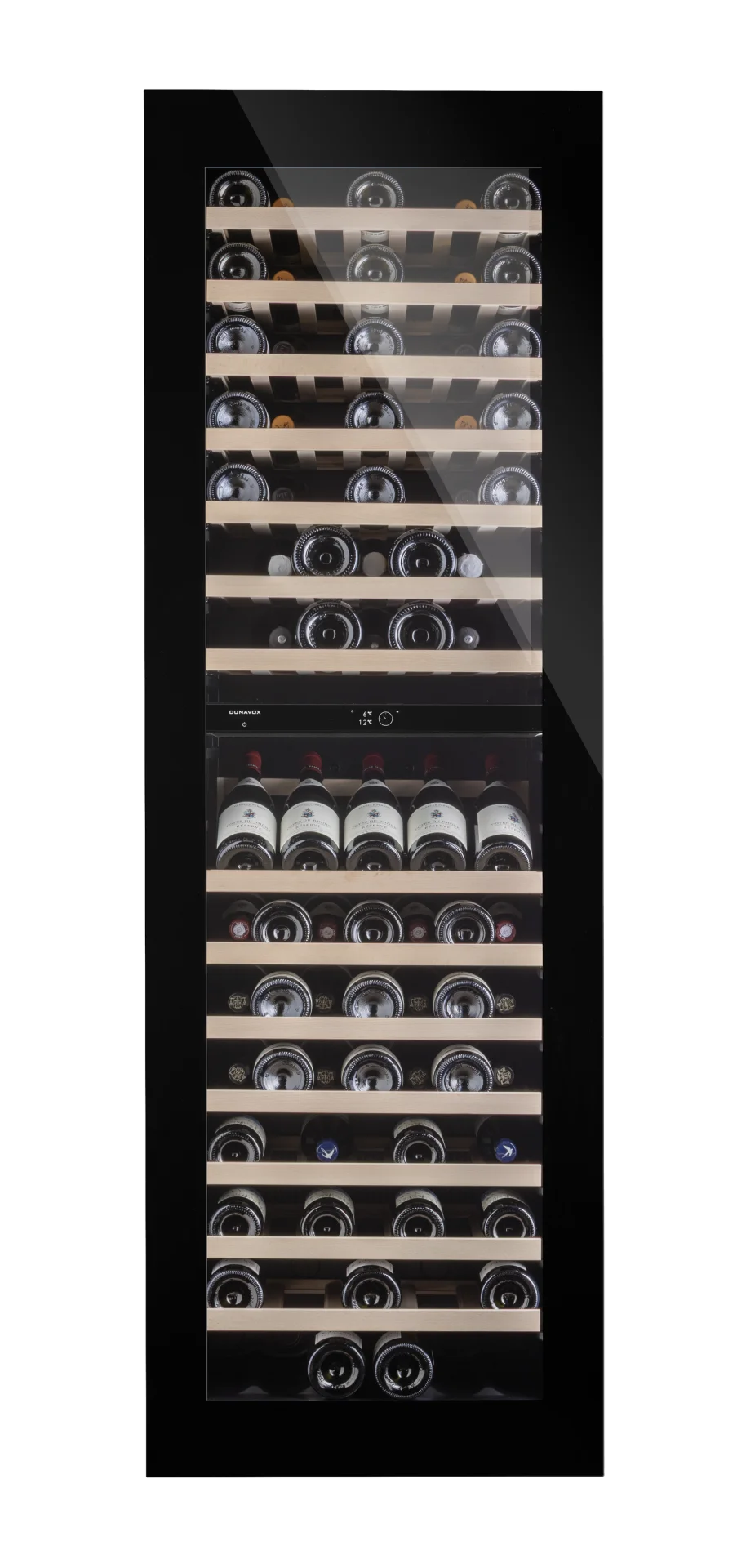

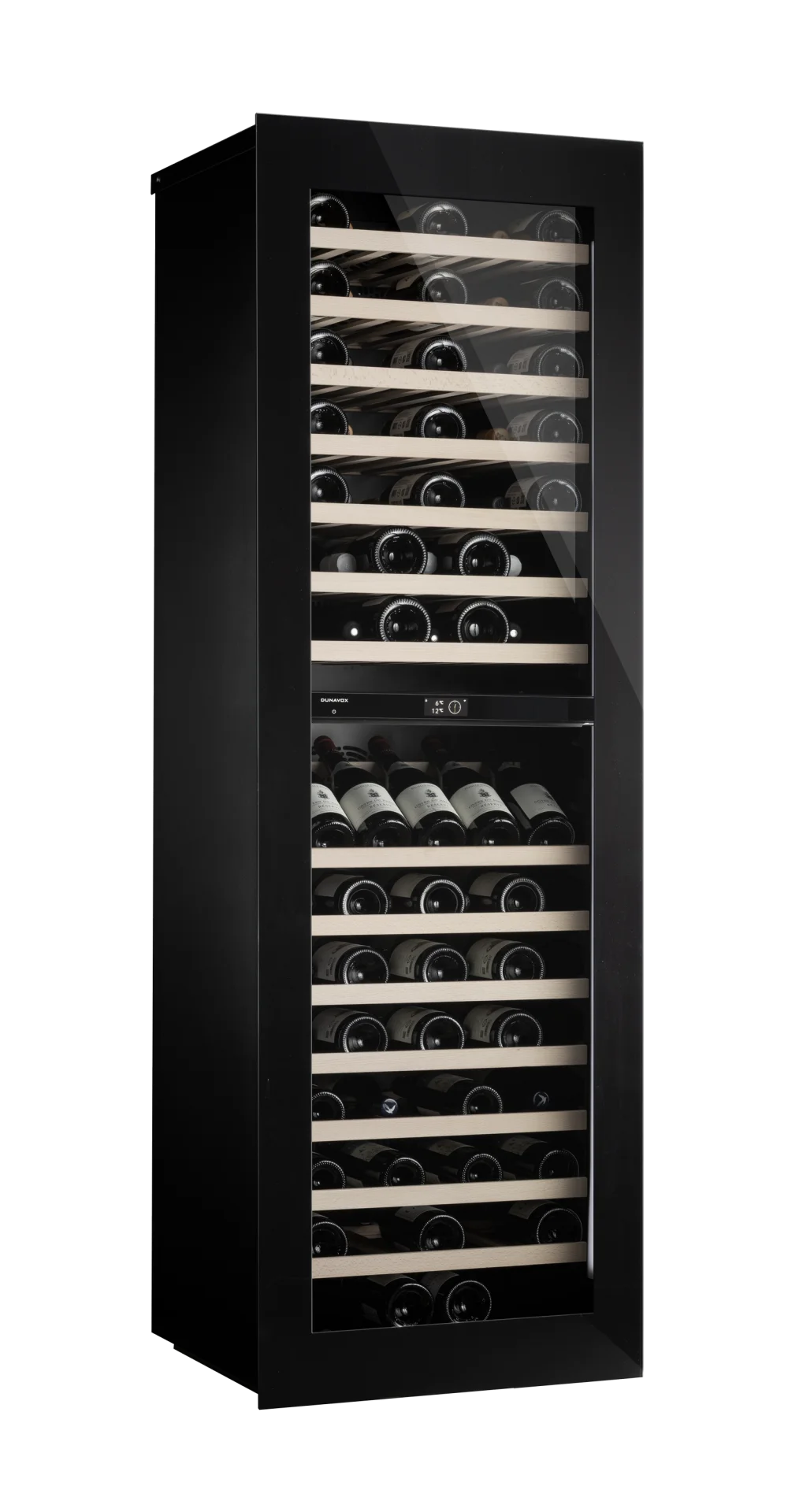

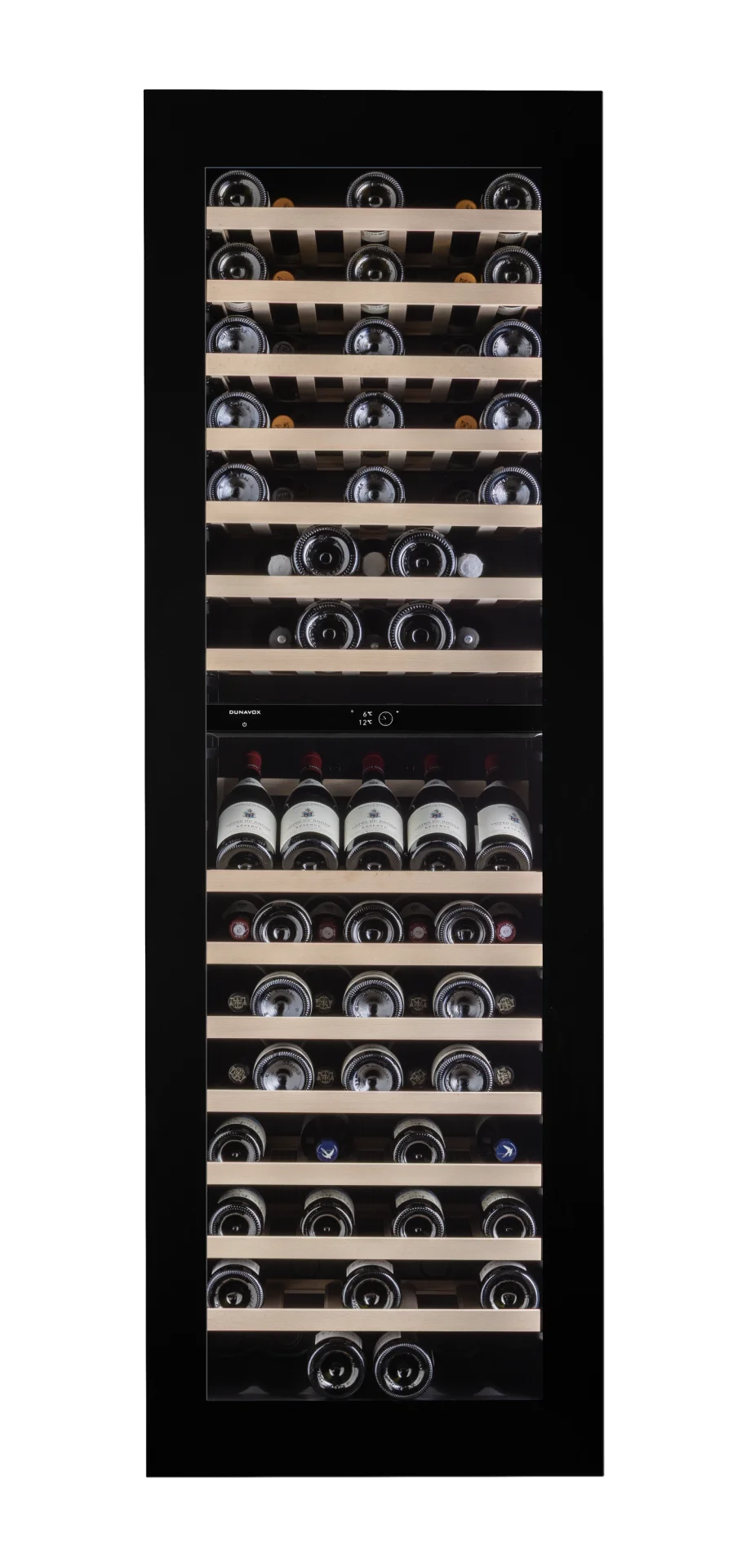

The DUNAVOX Noble-109 is the flagship fully integrated wine cooler offering 109-bottle capacity across two independent temperature zones with push-to-open, TFT touch display and WiFi Smart App connectivity.
Specification
DUNAVOX Noble-109 — Technical Data
Colour
Black, Overlay Panel
Installation

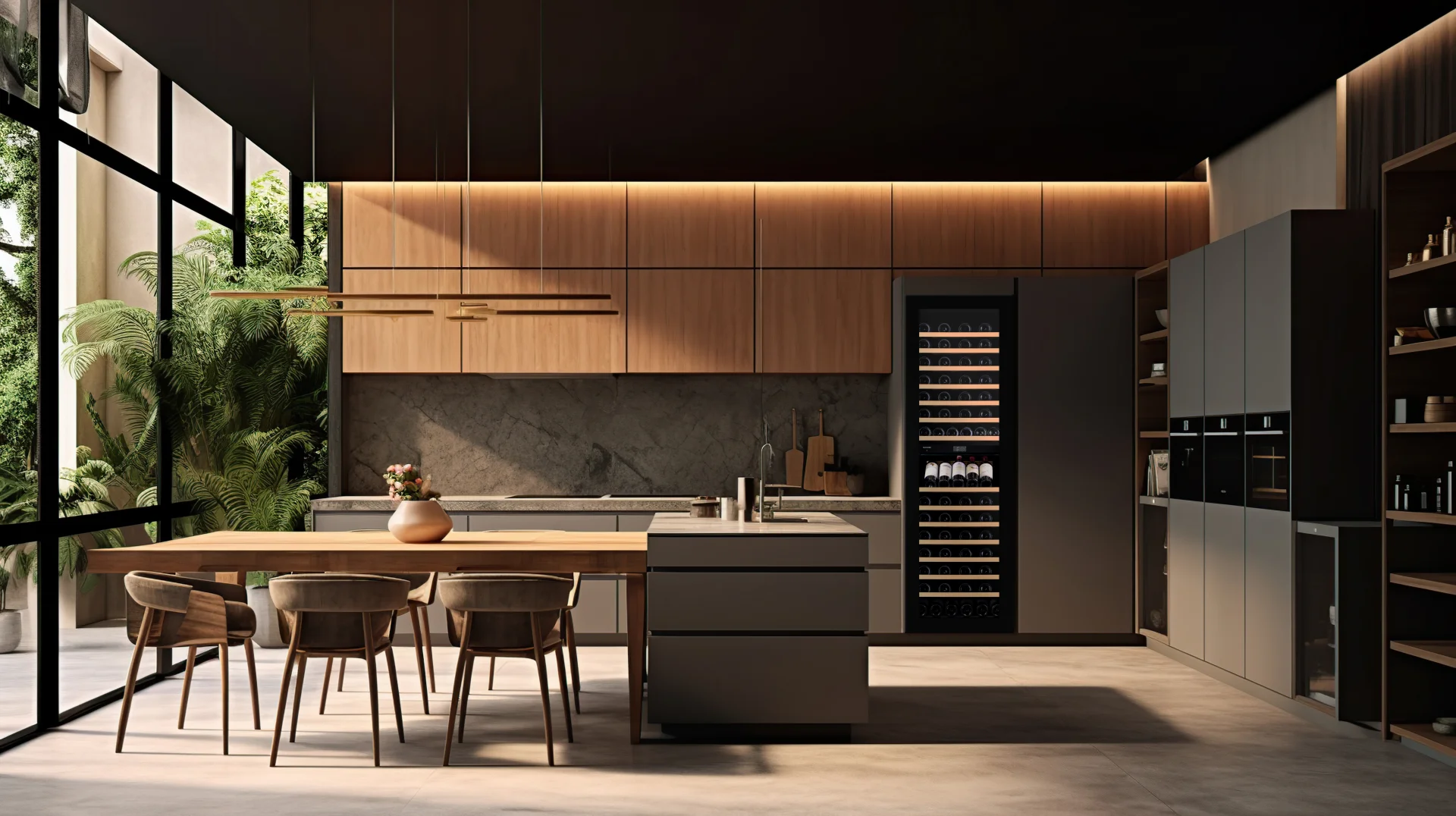

Fully integrated
Door Opening

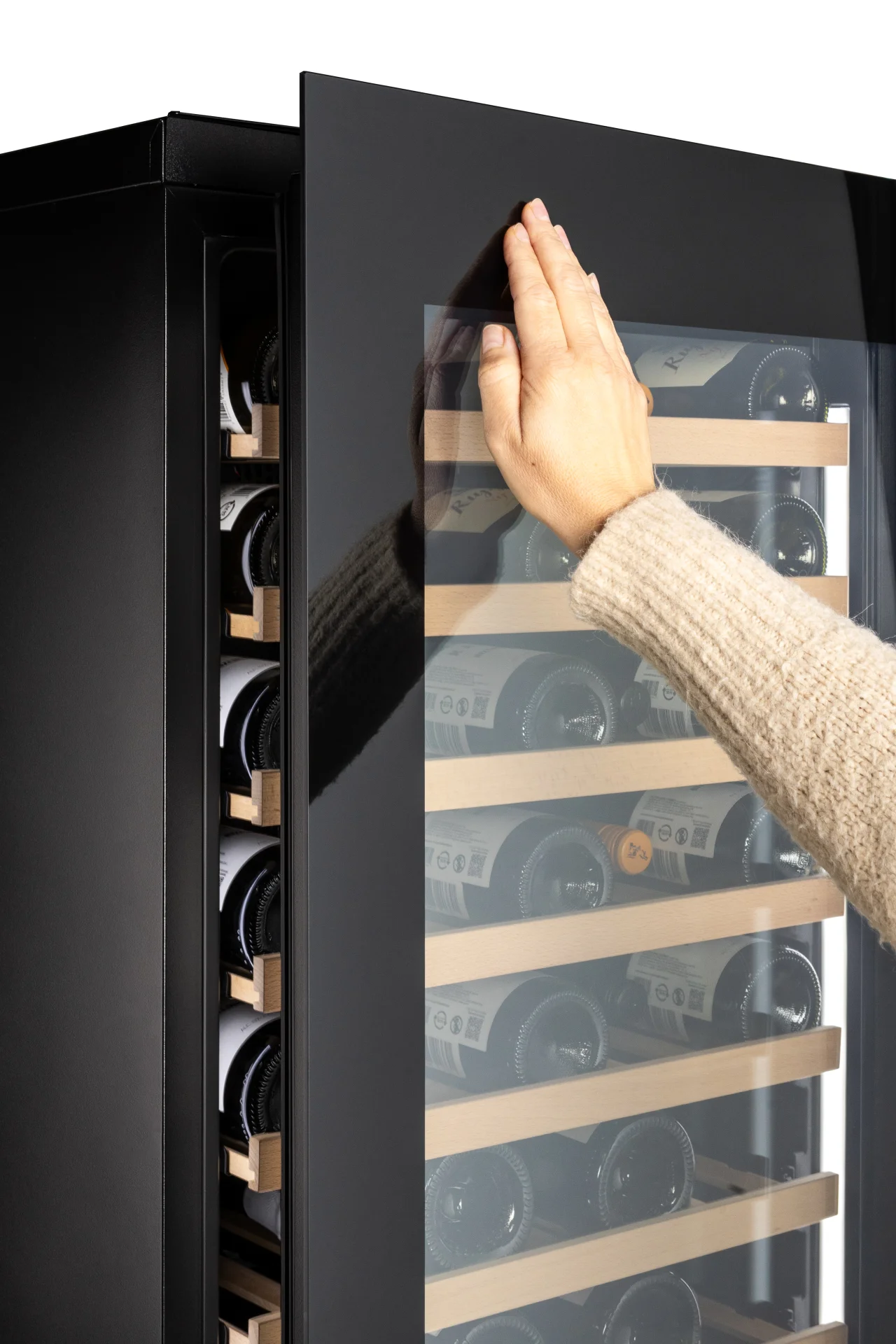

Push-to-open
Display

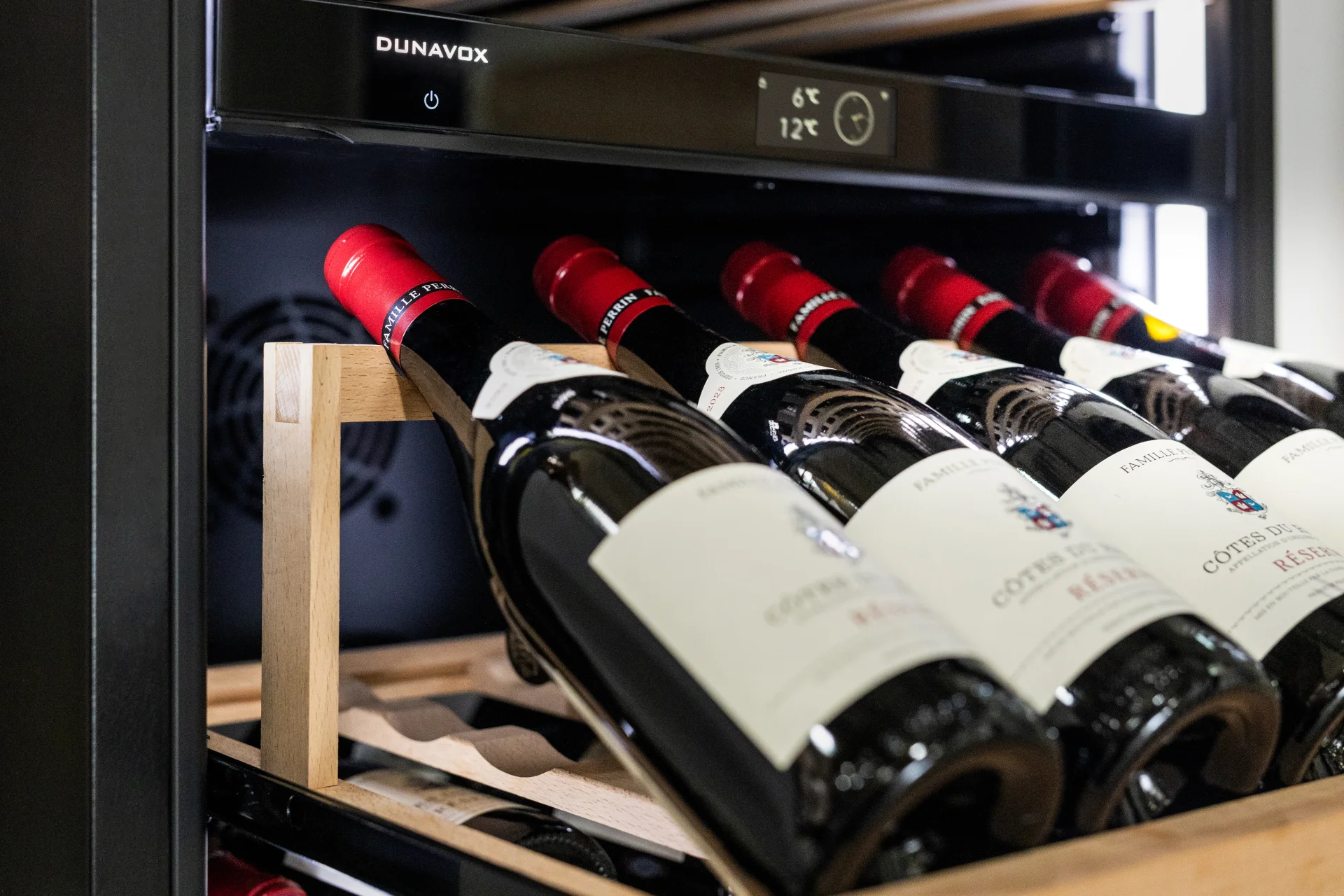

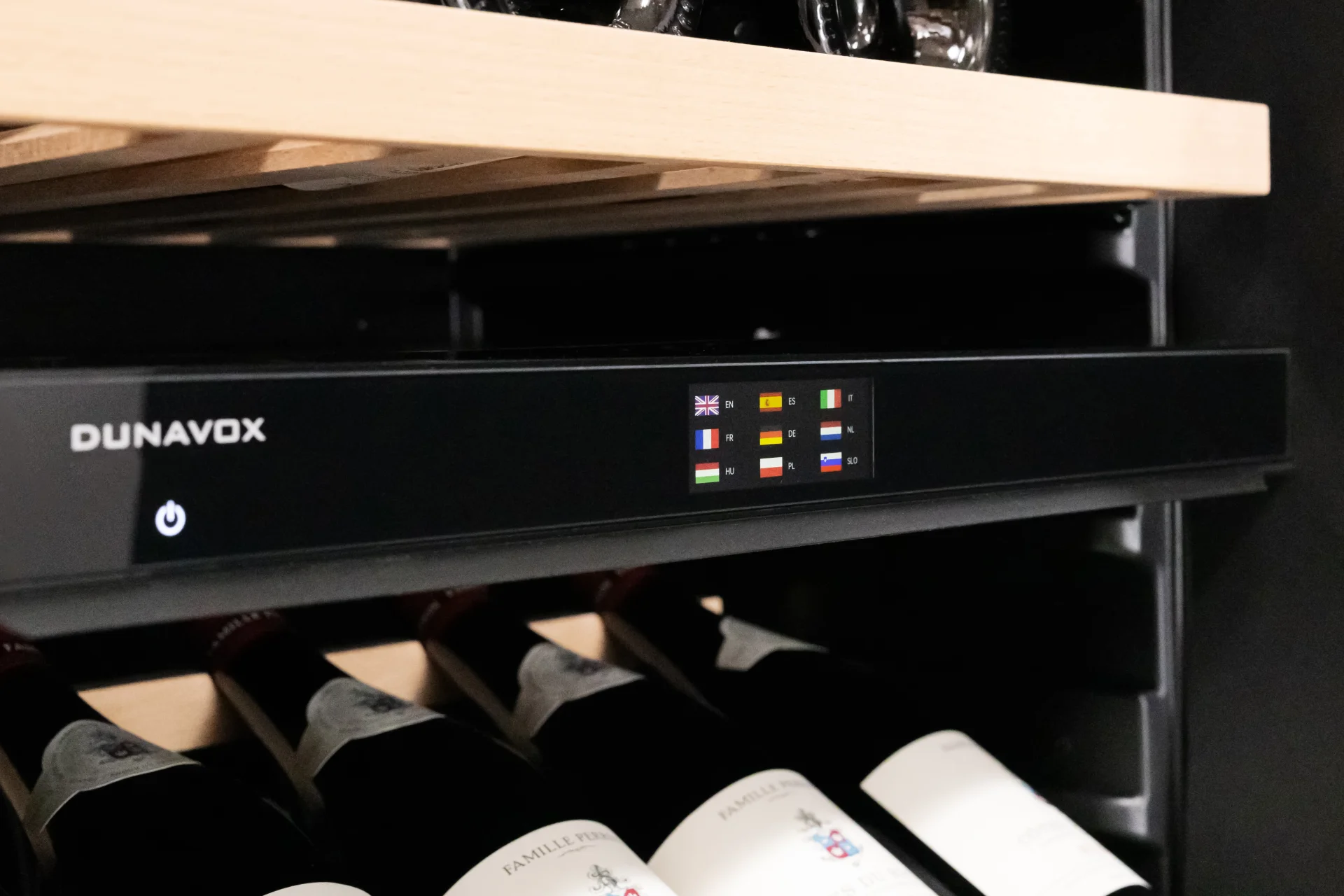

TFT touch screen
Energy Class
G
Annual Consumption
168 kWh/a
Rated Power
220-240V, 50Hz, 0,75A
Temperature Range
5-10°C // 10-18°C
Cooling System
Fan assisted cooling, inverter compressor
Noise Level
40dB
Warranty
3 years parts and labour + 2 years for compressor
Glass Door
UV protected, 2 layers of glass + Low-E, reversible
Interior Light
Multi LED light (white, amber, blue)
Shelves

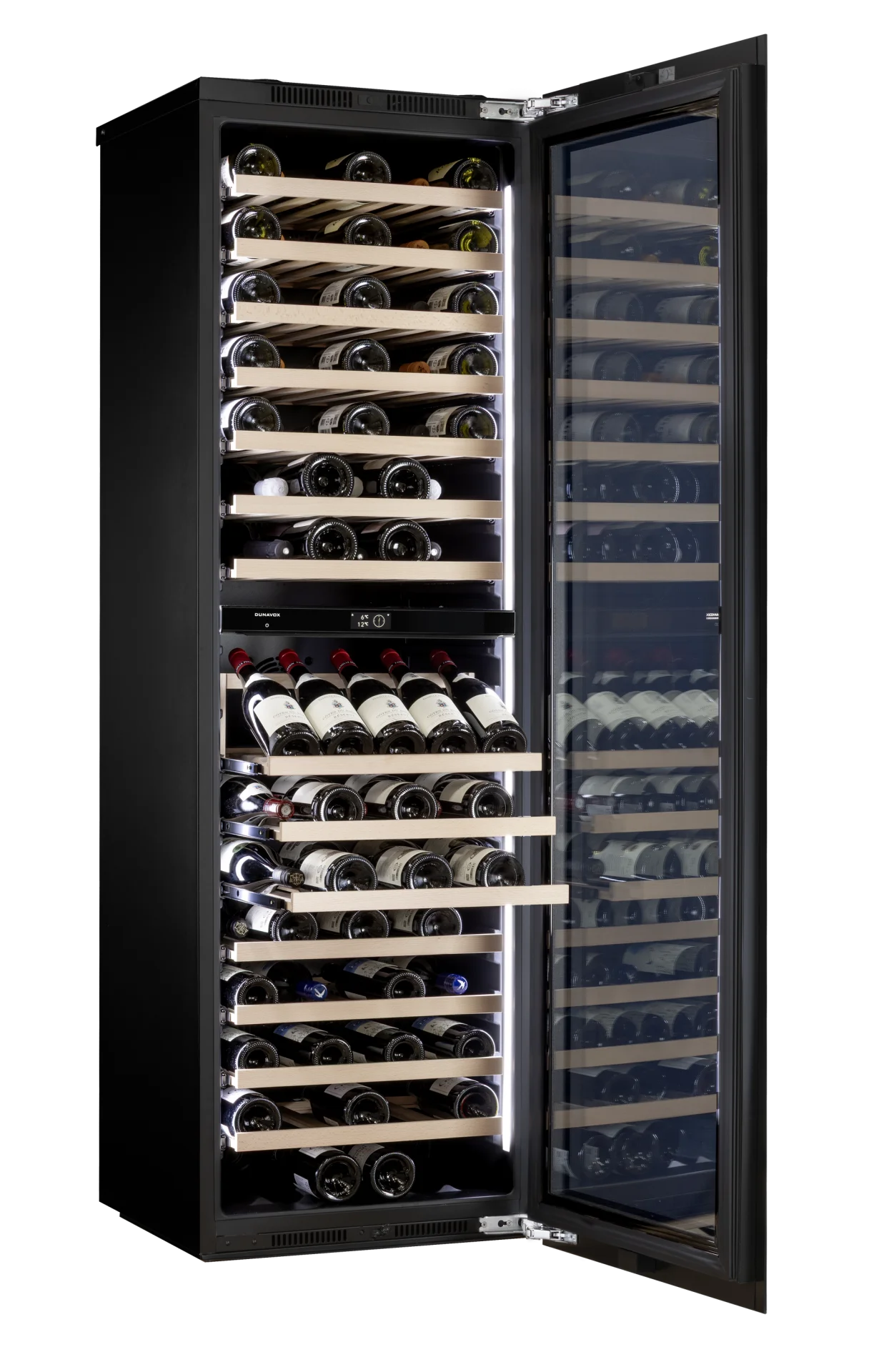

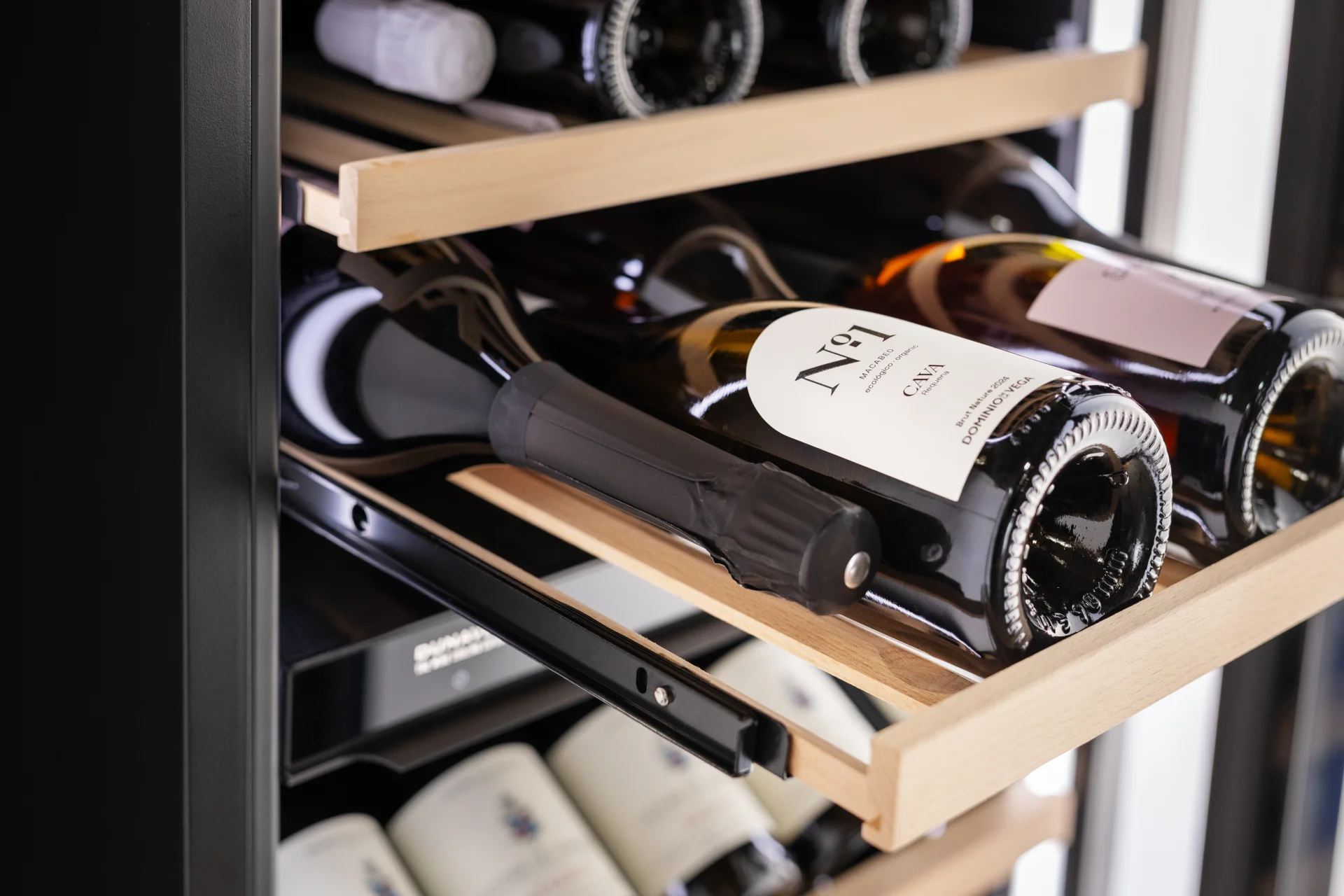

Telescopic wooden shelves
Bottle Capacity
109
Cooling Zone
Dual
Dimensions (gross)
1835×650×660 mm
Dimensions (net)
1784×590×565 mm
Net Weight
98.0 kg
WiFi + Smart App
Yes
Built-in Heater
No
Low Vibration
Yes
SUPPORT
DUNAVOX Noble-109 — Downloads & Documents
Energy Label
PDF
Installation drawings
PDF
Installation drawings OP
PDF
CAD Drawings (DWG) - DVN_109_291DB_TO
DWG
CAD Drawings (DWG) - DVN_109_291DOP_TO
DWG
Service & After Sales
PDF
EU Declaration of Conformity
PDF
Overlay panel installation guide
PDF
Datasheet
PDF
Service Handbook
PDF
Dealer Manual
PDF
GARAN labels
PDF
User Manual
PDF
Bottle Loading Plan
PDF
Door Overhang Drawing
PDF
Door Overhang Drawing
PDF
