DUNAVOX FLOW SERIES

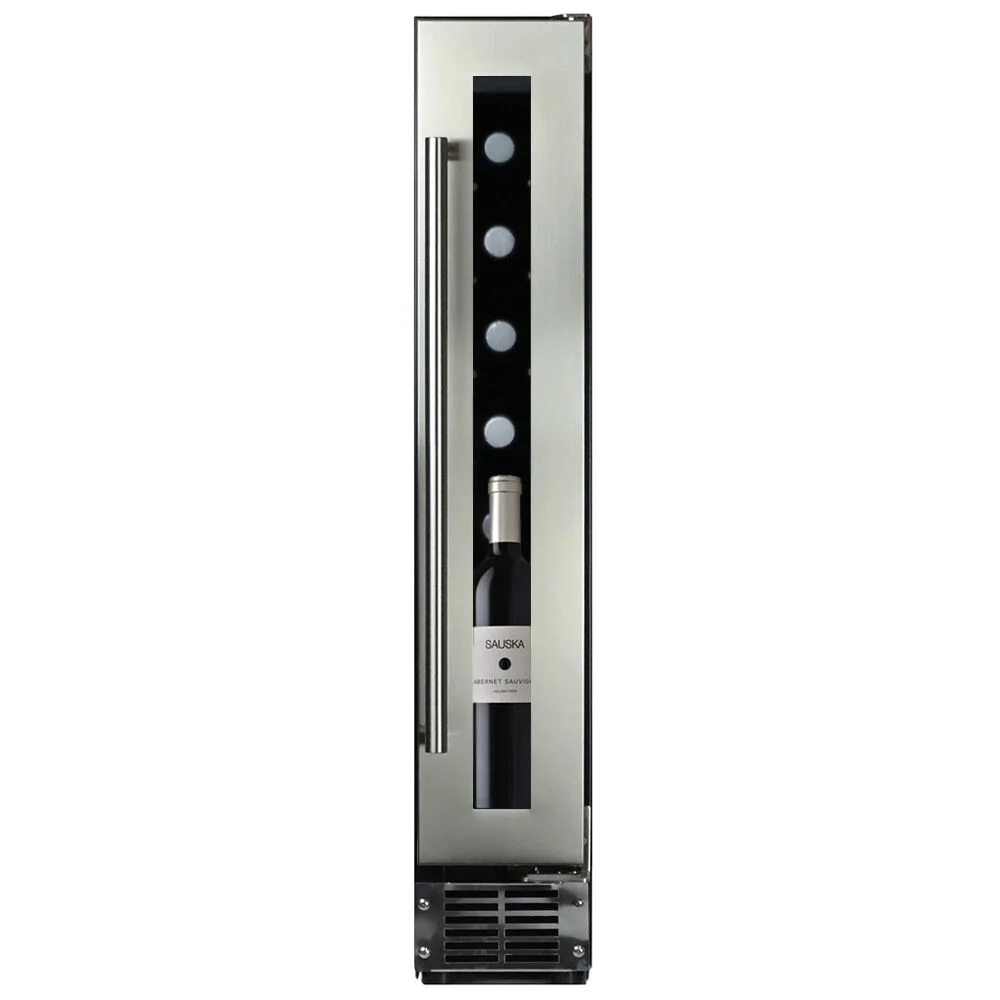

DUNAVOX Flow-8
DAUF-8.23B
GARAN Manufacturer's guaranteeUltra-Slim Undercounter Wine Cooling for Compact SpacesThe DUNAVOX Flow 8 is a slim 9-bottle single-zone wine cooler designed for compact kitchens, apartments and space-conscious interiors. As part of the DUNAVOX Flow Series, it combines an ultra-narrow footprint with four finish options to suit a wide range of kitchen styles.The Flow Series is about fitti…

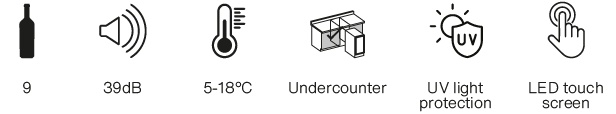

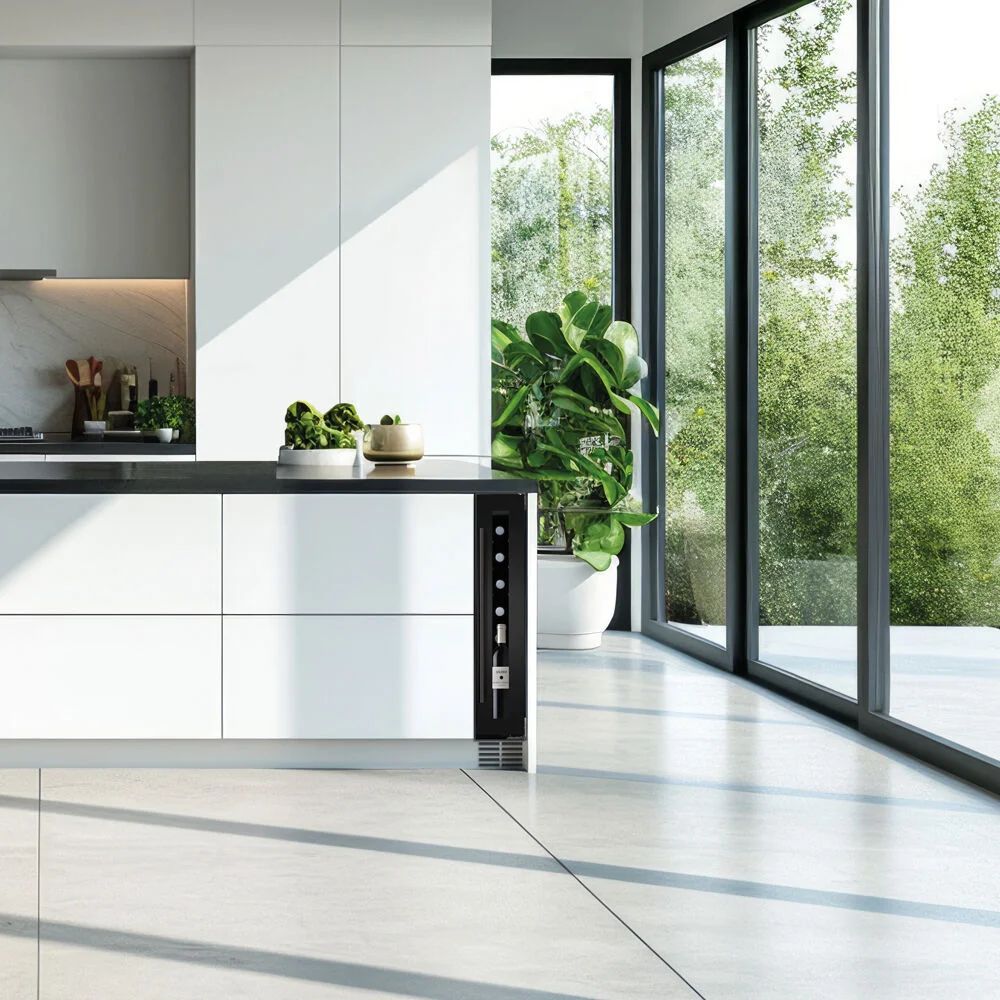

The DUNAVOX Flow-8 is an ultra-slim 145 mm wide undercounter wine cooler with integrated ventilation, perfect for compact kitchens where space is at a premium.
Specification
DUNAVOX Flow-8 — Technical Data
Colour

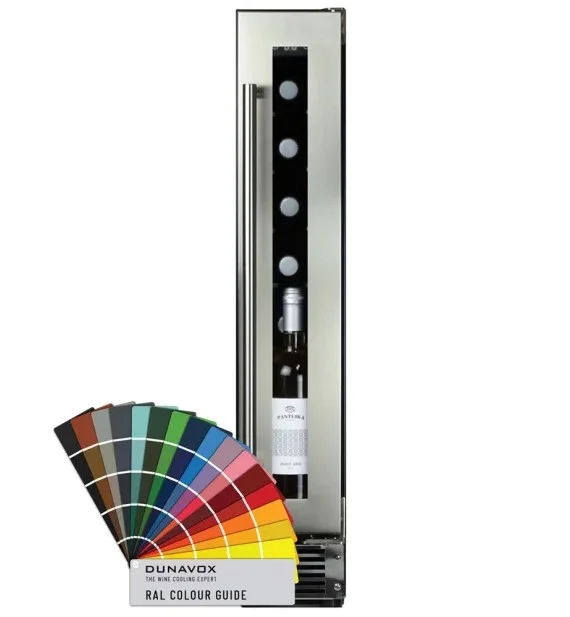

Black, Stainless steel, Matt black, RAL
Installation
Undercounter / Fully integrated
Door Opening
Handle
Display
LED touch screen
Energy Class
G
Annual Consumption
133 kWh/a
Rated Power
220-240V, 50Hz, 0,5A
Temperature Range
5-18°C
Cooling System
Fan assisted cooling, compressor
Noise Level
39dB
Warranty
3 years parts and labour + 2 years for compressor
Glass Door
UV protected, 2 layers of glass + Low-E, reversible
Interior Light
White LED light
Shelves
Fixed wooden shelves
Bottle Capacity
8
Cooling Zone
Single
Dimensions (gross)
860×175×590 mm
Dimensions (net)
820×145×548 mm
Net Weight
19.0 kg
WiFi + Smart App
Yes
Built-in Heater
No
Low Vibration
Yes
SUPPORT
DUNAVOX Flow-8 — Downloads & Documents
User Manual
PDF
Energy Label
PDF
Service Handbook
PDF
CAD Drawings (DWG) - DAUF_8_23B
DWG
CAD Drawings (DWG) - DAUF_8_23SS
DWG
Datasheet
PDF
Service & After Sales
PDF
EU Declaration of Conformity
PDF
Installation drawings
PDF
Dealer Manual
PDF
GARAN labels
PDF
Bottle Loading Plan
PDF
Service Handbook
PDF
